- Product / model

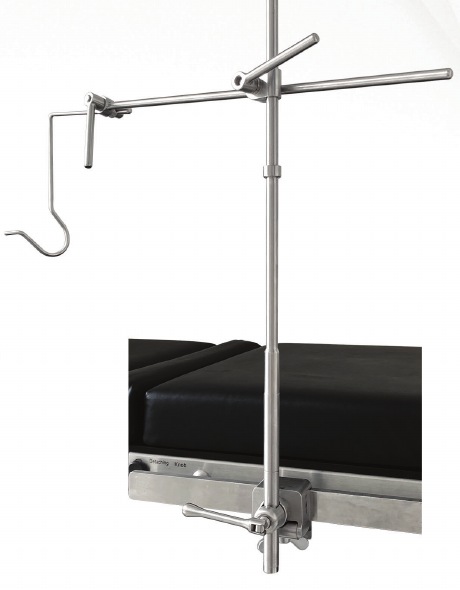

- Classic Nathanson Retractor
- Category
- Laparoscopy
- Brand
- HERBERT
Documented product specifications
- Listed main-component material
- SUS304
- Bar assembly dimensions
- Ø17 × 610 mm
- Bar slide range
- 440 mm
- Bar assembly weight
- 1,600 g
- Illustrated complete-set code
- GW2ZXABB222
Component specifications and codes
On a small screen, scroll the table horizontally to see all columns.

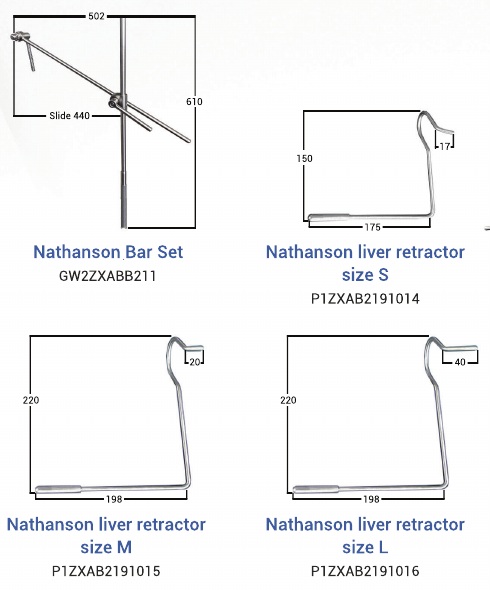

Dimensions in mm and weights in g, per component as listed in the source table| Component | Code | Dimensions (mm) | Material | Weight (g) |
|---|
| Nathanson Bar Set | GW2ZXABB211 | Ø17 × 610 | SUS304 | 1,600 |
|---|
| Liver Retractor S | P1ZXAB2191014 | Ø5 | SUS304 | 30 |
|---|
| Liver Retractor M | P1ZXAB2191015 | Ø6 | SUS304 | 130 |
|---|
| Liver Retractor L | P1ZXAB2191016 | Ø6 | SUS304 | 140 |
|---|
Source: SPHBT2026-CAT-029 Rev.00 · 16.06.2026. The complete-set code printed in the catalog is GW2ZXABB222; the filename states GW2ZXAB222. Table weights are for individual components, not the complete set. Confirm clamp and retractor quantities in the quotation.
Hospital team review checklist
Request the following where applicable, using documentation for the offered model and configuration.
Engineering and compatibility
Voltage, frequency, power, battery and power-loss operation; device weight and safe working load; height range, Trendelenburg / reverse, lateral tilt and longitudinal slide; radiolucent area and C-arm clearance; rail and clamp dimensions in millimetres and supported US / EU / UK standards.
Clinical evaluation
Discuss a demonstration of intended positioning, controls and adjustment, cleaning instructions and training. Ask for available installation photographs, videos and references approved for sharing.
Warranty, service and parts
Request written terms covering structure, electrical and hydraulic warranty periods, exclusions, PM, response and on-site times, coverage, charges, loan equipment and parts lead times.
Request model specifications and service terms ↗
Before requesting a quotation
Is Classic Nathanson Retractor compatible with our existing equipment?
Provide the make and model of your existing equipment, photographs of the connection points and your requirements so the technical team can confirm compatibility before quotation. Product names or photographs alone do not establish compatibility.
How can I request specifications and a quotation?
Classic Nathanson Retractor: send your organization, quantity and intended application using the quotation form or email info@herbert.co.th
What should I confirm before ordering?
Request documentation for the offered model to confirm dimensions, load capacity, operating system, compatible accessories, installation and warranty terms, and applicable certification documents.
