0–96 mm adjustment range
The catalog describes a smooth travel mechanism with a 0–96 mm adjustment range and 75 mm inner blade width.
IMA Retractor Set
HERBERT / GW2ZXAB2256
IMA Retractor Set
See the retractor and its support as one set.
IMA retractor with lock arm, Radial Setting Clamp Type-2 and aluminium box. Review 0–96 mm adjustment travel, drawings and the installation illustration as one instrument and support set.
- Adjustment range0–96 mm
- IMA retractor dimensions99 × 281 × 17 mm
- Inner blade width75 mm
Share your organization, quantity and application so the team can discuss the appropriate model and configuration.
IMA Retractor SetRequest a quote ↗
IMA RETRACTOR / INSTRUMENT & SUPPORT SET
See the retractor and its support as one set.
The HERBERT IMA Retractor Set brings together a retractor, lock arm, Radial Setting Clamp Type-2 and aluminium box. Installation illustrations and dimensional drawings help your team review the instrument and its supporting components together before specifying a package.
Clearly identified components
The retractor, lock arm, Radial Setting Clamp Type-2 and box each have a listed name and code.
Drawings and installation views
Review instrument dimensions, arm geometry and the illustrated table attachment when preparing your requirements.
A CLOSER LOOK
Begin with the instrument itself.
IMA Retractor GW2ZXAB2256 is listed at 99 × 281 × 17 mm with an inner blade width of 75 mm. The drawing shows 0–96 mm adjustment travel, giving the user team a dimensional basis for comparison. Product photographs and drawings provide a common reference for clinical staff, biomedical engineering and procurement when reviewing the same proposed instrument.
Include the arm and clamp in your review.

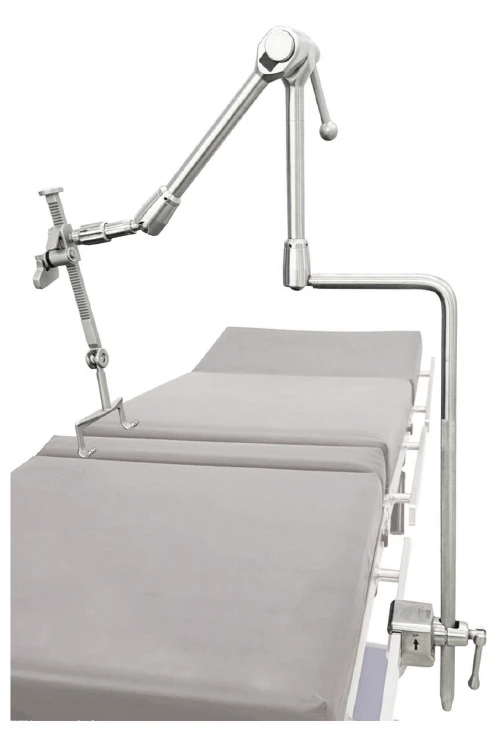

Lock Arm GW2ZXCS1222 and Radial Setting Clamp Type-2 G13ZX325202 appear with the retractor in the installation illustration. Review the required reach, connection points and table rail rather than assuming compatibility from the photograph. Share your existing table information and mounting photographs with HERBERT to discuss the appropriate combination and confirm the quoted items.
A defined box and item list for procurement.

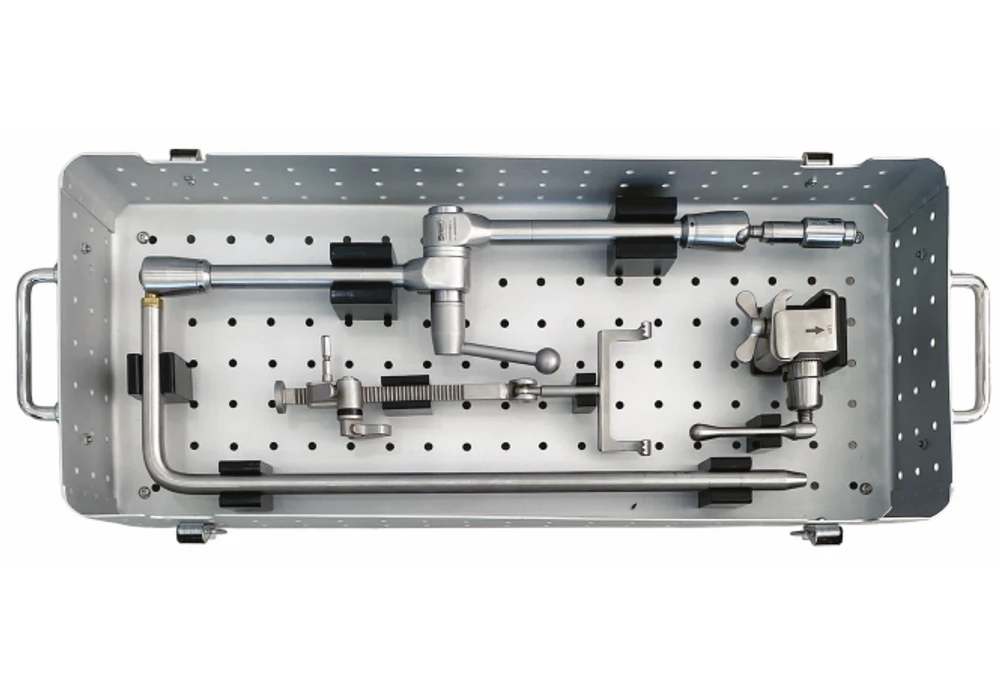

IMA Aluminium Box GW2ZXAB2257 measures 253 × 613 × 122 mm. The cover image shows the retractor, arm and clamp arranged in the box. For procurement, start with the four main components, quantities and documentation requirements so the team can prepare a defined proposal. Bring any additional component, OEM or sourcing requirements to the HERBERT team at MEDICA 2026.
